Start
Select to begin your workout. (Available for APEX 2 Pro/VERTIX 2/VERTIX 2S)
Initial
Select to change initial phase.
- Approach
- Climb
- Descend
Settings
Grading Systems
- Rock YDS
- Rock French
- Rock Aid
- Ice Grades
- Mix Grades
- Do Not Record
Navigation
Select to change navigation related settings.
- Select one route to navigate among the stored routes on the watch.
- Start Course
- Select to begin the workout in navigation mode.
- Elevation Details
- Select to preview the elevation details for this route including total ascent/descent, max elevation and distance.
- Start Point Direction
- Select to choose the start point for this route.
- Map Direction
- Select to choose the heading of the navigation mode between true north up or heading up.
- Deviate Course Alert
- Select to enable or disable the off-route alert. Once enabled, the watch will alert you every minute if you remain deviated from the route.
Activity Alert
Select to enable or disable activity alerts.
Superlock
Outdoor Climb mode utilizes a unique Superlock setting to avoid unintended unlocking and mis-operation during your climbs.

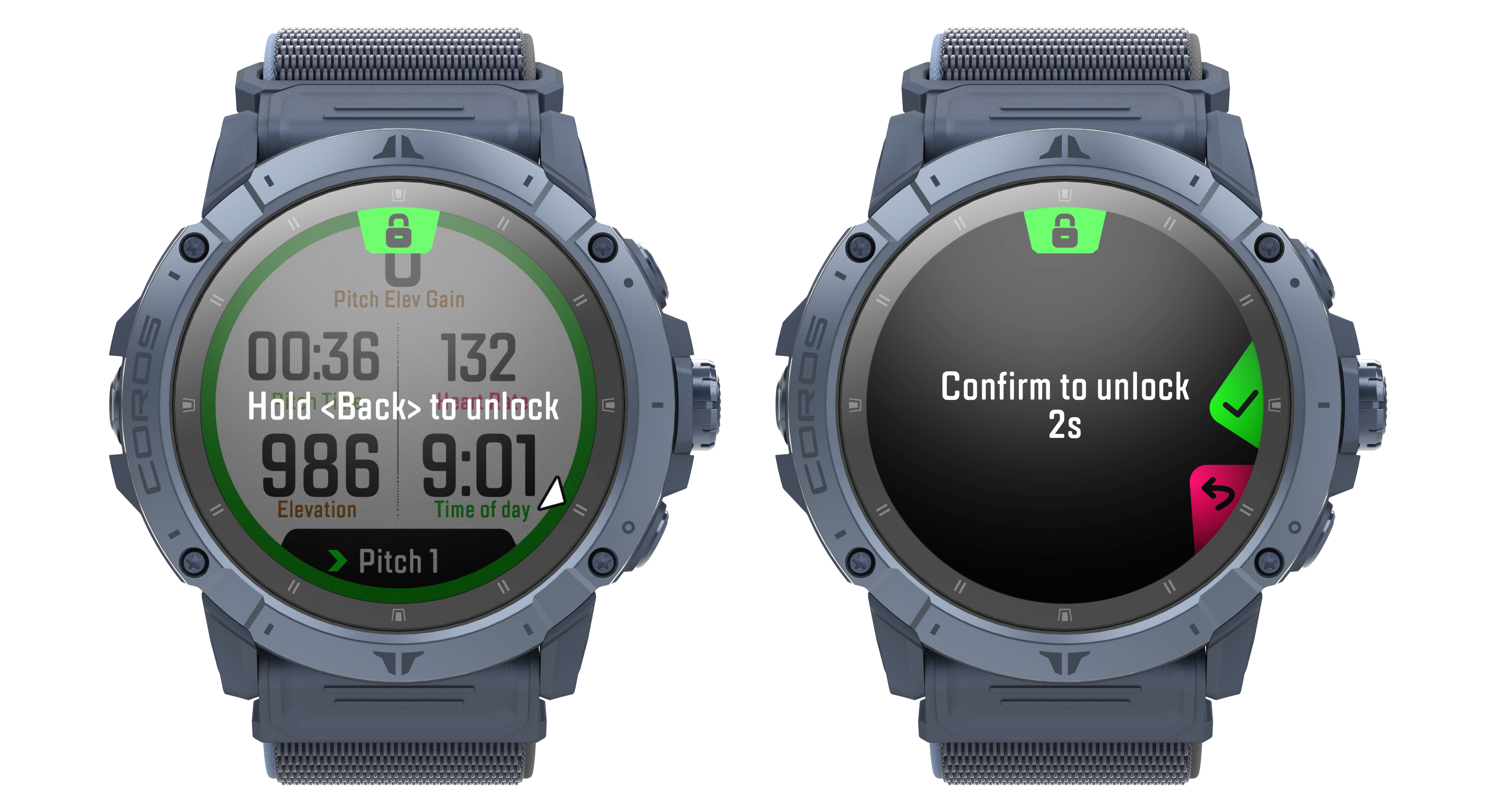

Before pressing Start, scroll down to Auto Lock and toggle this ON. While recording your climb, the watch will auto lock after 10 seconds of inactivity. To use the watch again, follow these steps:
- Press either the dial or Back button on the watch
- After the lock screen appears, long press the Back button until you see the "Confirm to unlock" screen
- You will have 3 seconds to press the dial to confirm to unlock
When toggled on, Superlock in Outdoor Climb mode functions independently of your Auto Lock settings for your other activities.
Supported data types
Time of Day, Total Time, Workout Time, Distance, Elevation, Elev Gain, Elev Loss, Speed, Avg. Speed, Vert. Speed, Avg. Vert Speed, Heart Rate, Avg. HR, Max. HR, Pitches, Pitch Time, Pitch Distance, Pitch Elev Gain, Pitch Elev Loss, Pitch Speed, Pitch Vert. Speed, Pitch HR, Training Load, Aerobic TE, Anaerobic TE, Calories, Battery, Body Temp., Avg. Body Temp, Max Body Temp, Min Body Temp.
