Pairing Process
DURA supports pairing with SRAM AXS via ANT+.
- From DURA's main menu, scroll to System > Accessories > Add Accessories.
- Make sure your electronic shifting is in pairing mode.
- DURA will begin searching for nearby devices.
- When your electronic shifting appears, select it on DURA screen to complete the pairing process.
Set Up Button Control
Using the SRAM AXS app, you can customize button control settings to rotate between data pages on DURA.
1. Open the SRAM AXS App
Ensure your SRAM Red shifters are connected to the app.

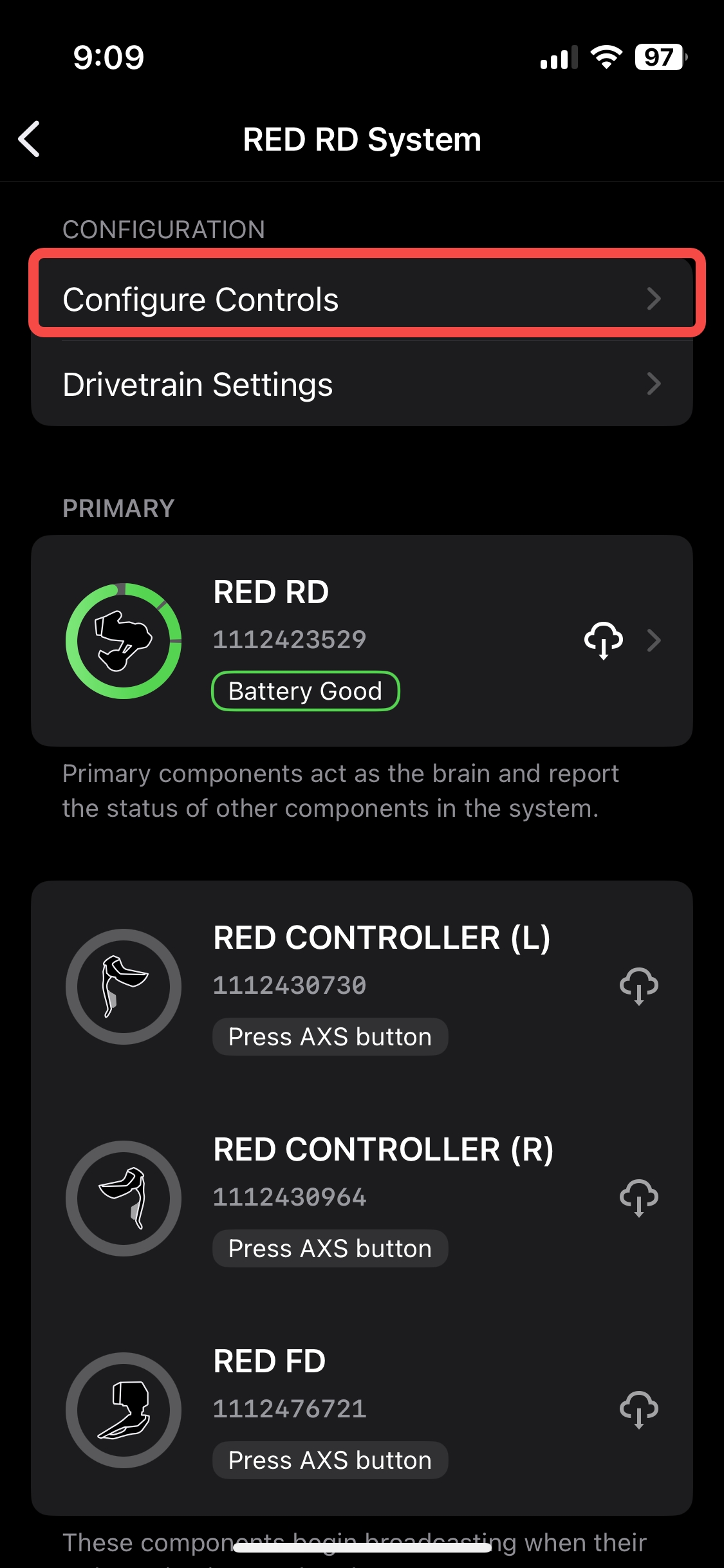

2. Access the Shifter Settings in the 'Configure Controls' Menu
In the AXS app, select your shifters and navigate to the settings for the "bonus buttons."

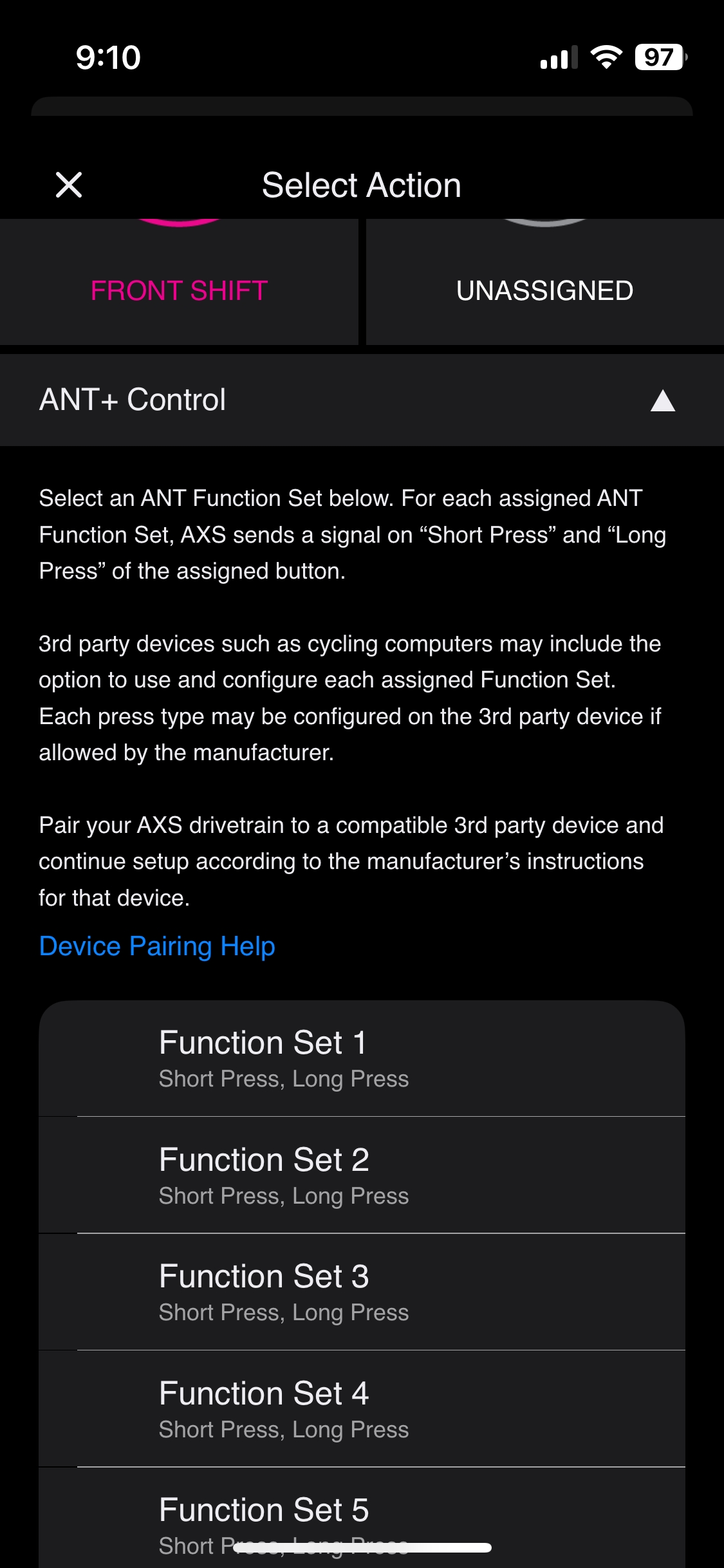

3. Designate BONUS (Right) and BONUS (Left) as ANT+ Control Buttons

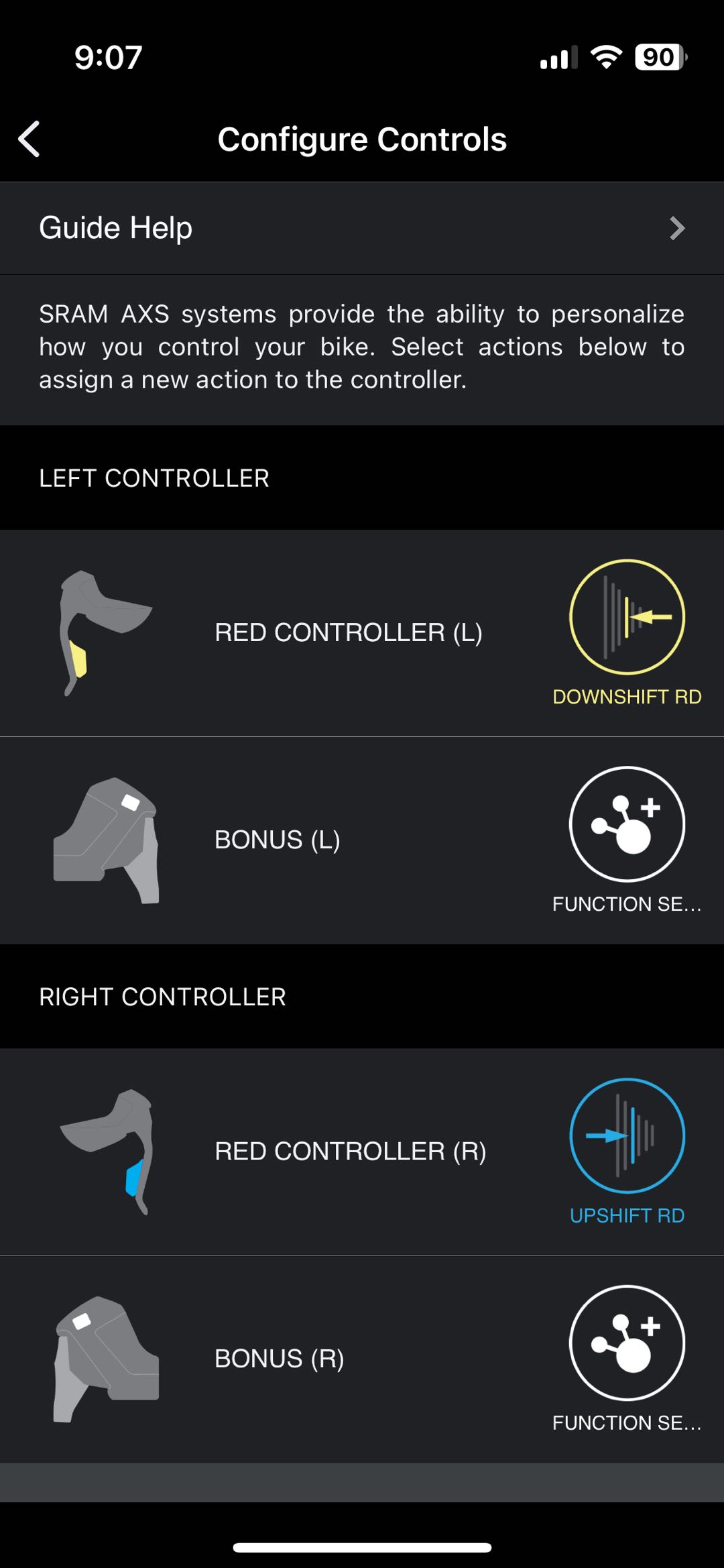

Under the Configure Controls menu, enter the "bonus buttons" menu.
4. Assign Bonus Buttons as Function Set 1 for Left, Function Set 2 for Right
Once selected, set the ANT+ Control function to "Function Set 1" for the left button, then "Function Set 2" for the right button.
5. Pair your SRAM Red drivetrain with DURA
Follow the steps in the section above to pair your drivetrain with DURA. Your DURA should automatically detect the SRAM Red shifters as ANT+ inputs. Follow the on-screen prompts to complete the pairing.
6. Test the Buttons
After pairing, test the "bonus buttons" to ensure they are functioning correctly with your COROS DURA
Customize Data Pages
When paired with electronic shifting, DURA can display the following data fields (learn how to customize data fields):
- Gears (the current front and rear gears)
- Gear Combo (the current gear combination)
- Gear Ratio (the number of teeth on the front and rear bike gears; this data will also be displayed in the activity summary)
- Battery Level (the battery level of your connected shifters)
