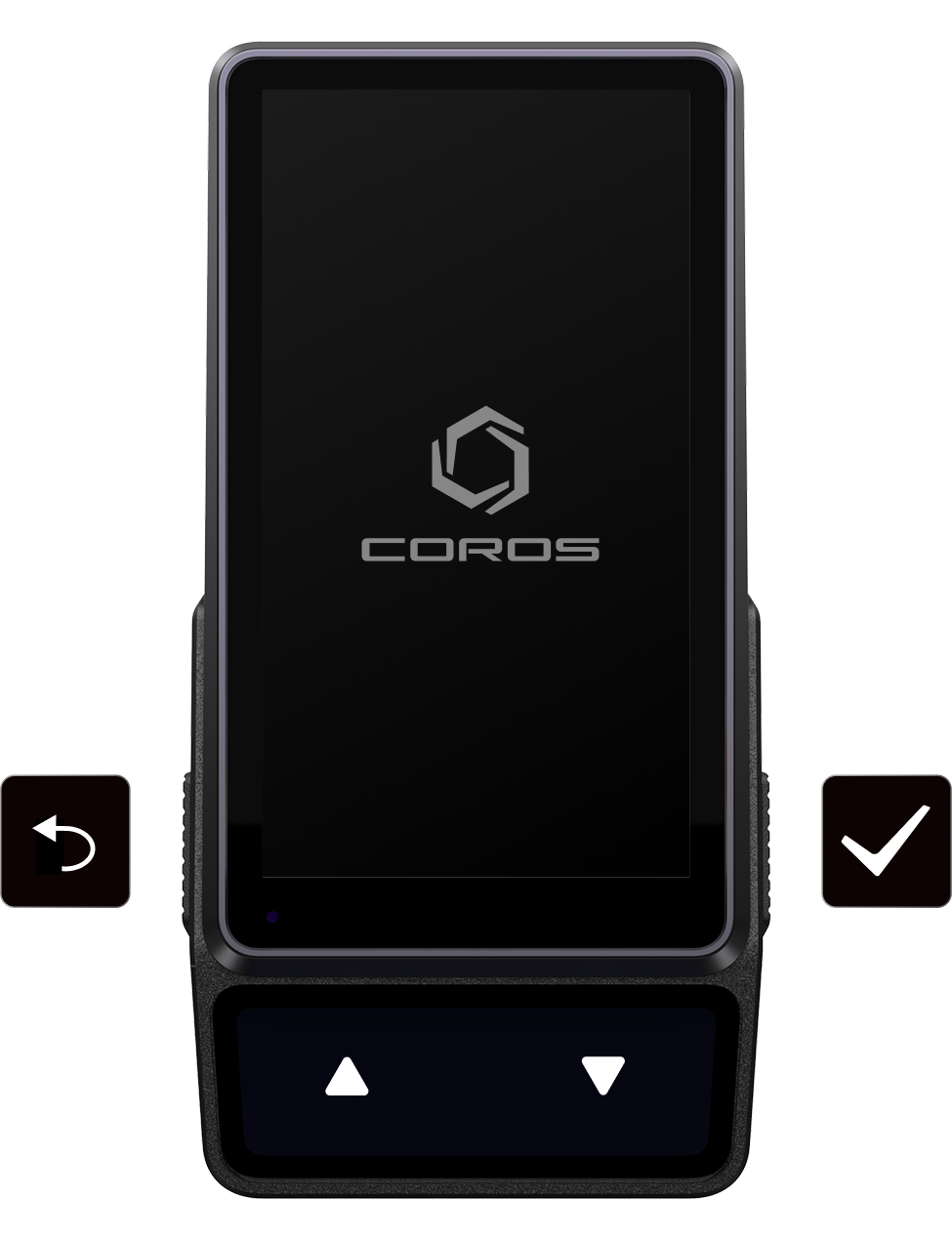

Button Layout and Operation on DURA 2 SOLAR

DURA 2 SOLAR has two side buttons, two haptic buttons on the solar panels, and full touchscreen capability.

DURA button tutorial.png

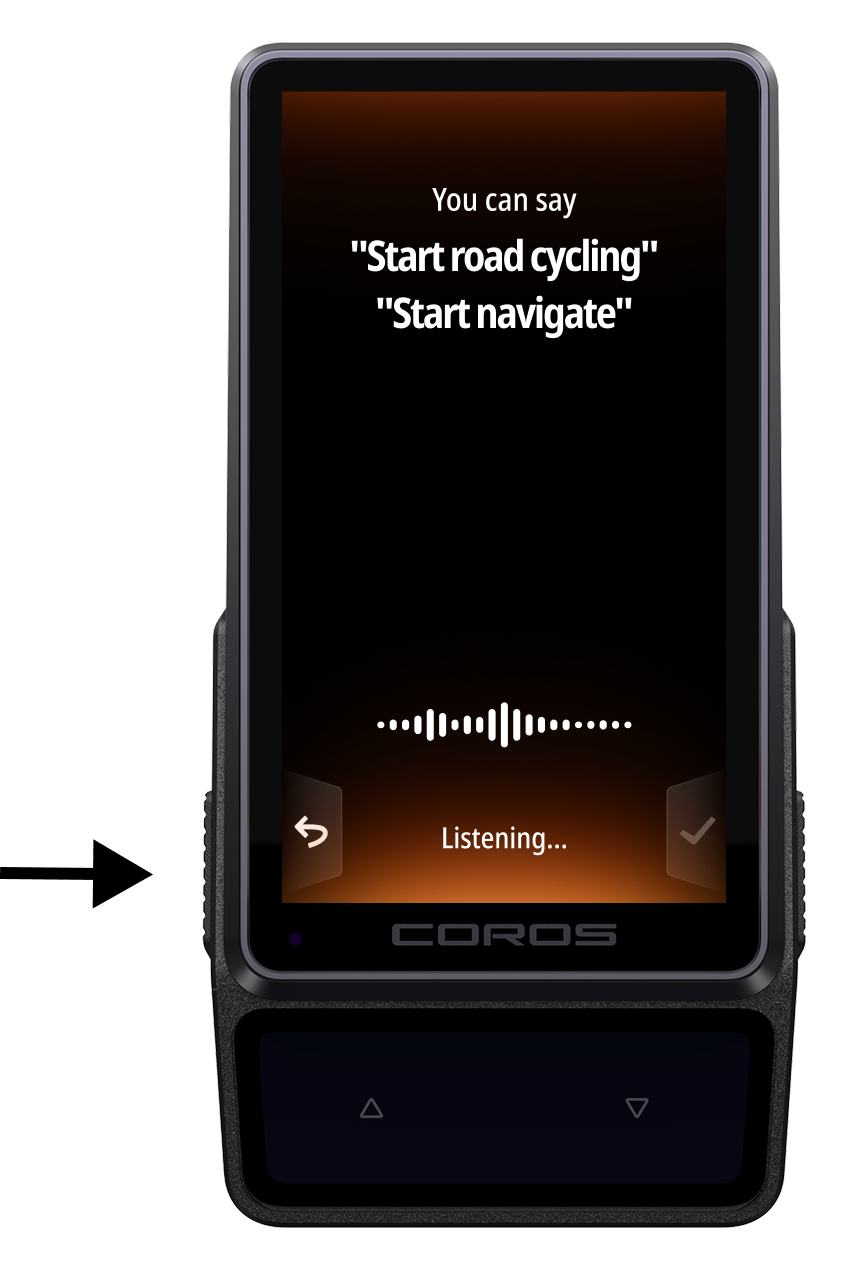

Left Side Button

Daily Use

  • Go back to the previous menu
  • Long press to give voice commands

During Activities

  • Long press to give voice commands
  • Customizable during activities for marking laps, adding pins, or horizontal page switching.
    • Open your COROS app to the Profile page, select DURA 2 SOLAR, then open Activity Settings to customize the left button control.
Left side button.png

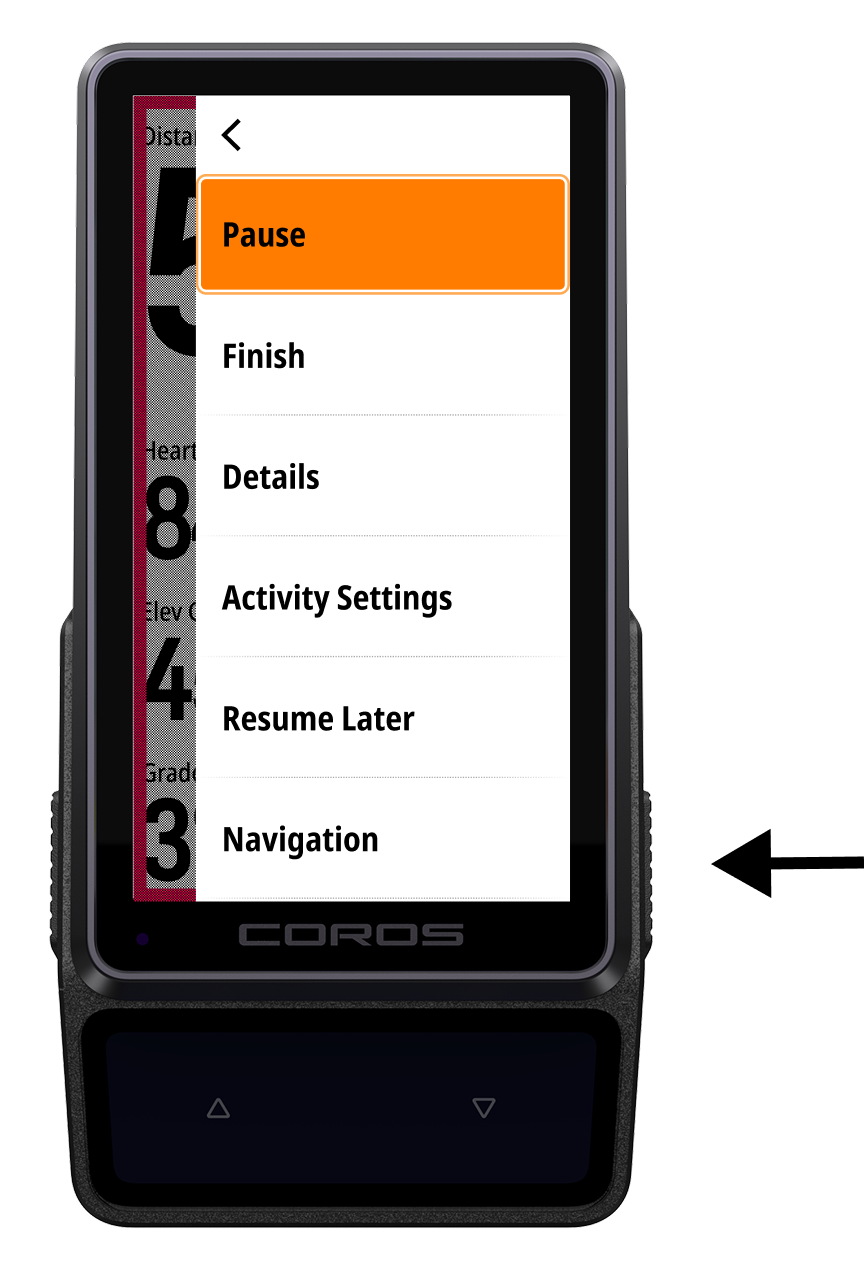

Right Side Button

Daily Use

  • Long press to power on the device
  • Select menu items

During Activities

  • Pause your activity, or open Pause Options menu.
    • You can customize whether DURA 2 SOLAR instantly pauses, or whether the right button opens the Pause Options menu, which keeps your activity tracking in the background while you choose from several options (Pause, Resume Later, Navigation, Activity Settings, and more).
  • When a menu is open, use this button to select menu items.
Right side button.png

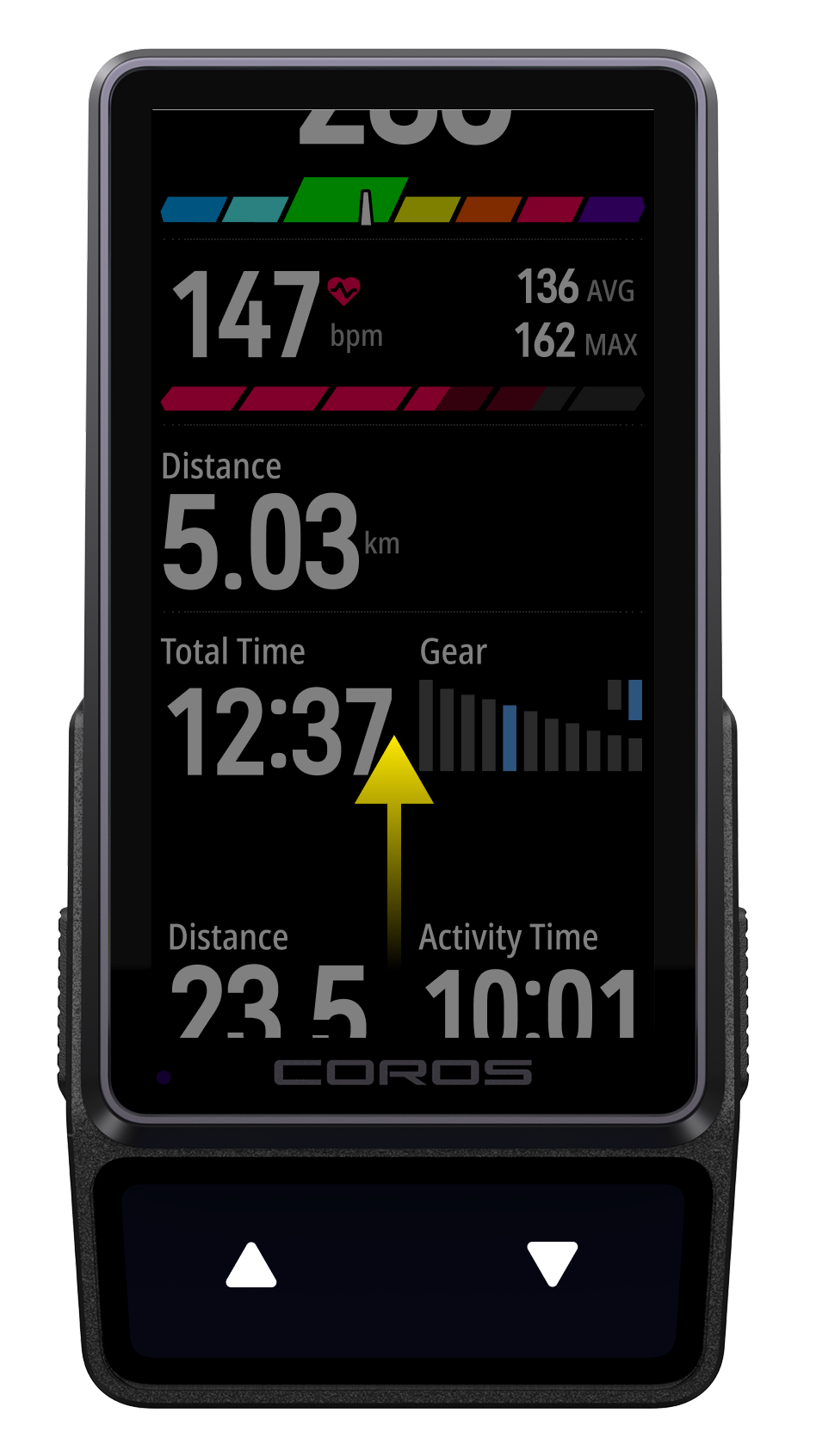

Left Haptic Button

(Located on the left solar panel)

Daily Use

  • Vertical selection for menus

During Activities

  • Scroll up through activity data pages
  • Zoom in while viewing the map page
    • Only available when the map is one of your horizontal pages
  • Vertical selection for menus

Right Haptic Button

(Located on the right solar panel)

Daily Use

  • Vertical selection for menus

During Activities

  • Scroll down through activity data pages
  • Zoom out while viewing the map page
    • Only available when the map is one of your horizontal pages
  • Vertical selection for menus
Haptic buttons.png

Touchscreen

Daily Use

  • Tap to select
  • Swipe vertically through menus
  • Swipe horizontally through menus to go back to the previous page
  • Swipe down from the top of the screen to open Control Center

During Activities

  • Swipe vertically through activity data pages
  • Swipe horizontally for maps and media during activities
  • Long press on a data field to change metrics mid-ride
  • Double tap anywhere on the screen to activate the Bell
  • Pinch to zoom on the Map page
  • Swipe down from the top of the screen to open Control Center
  • Swipe vertically through menus and tap to select menu items
