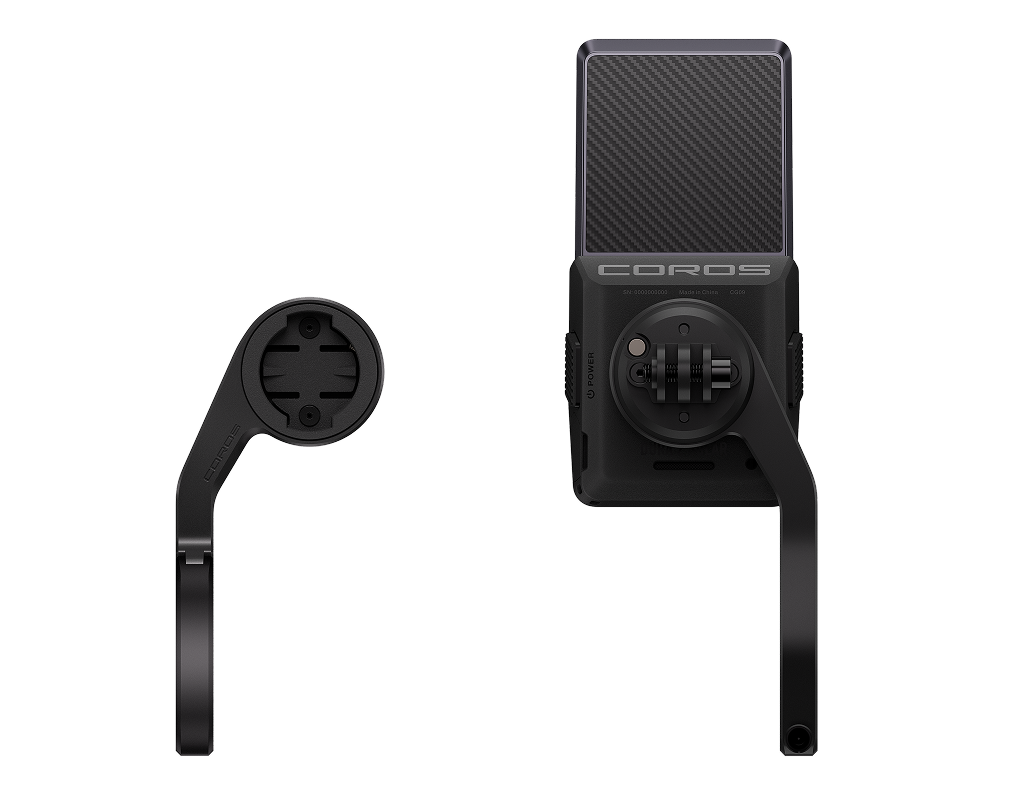

The COROS DURA 2 SOLAR Aluminum Standard Mount comes with a handlebar mount and multitools for easy installation.
Specs and Compatibility
The Aluminum Standard Mount is compatible with DURA 1 and DURA 2 SOLAR.
The mount fits handlebar diameters between 25.4mm - 31.8mm, and is 70mm long (distance from center of base to center of handlebar round tube).
Installation Guide
- Before installing the mount, choose a location on your handlebars that will not interfere with the safe handling of your bike.
- Next, use the larger multitool to remove the screw from the mount.
- Open the ring, and insert the appropriately sized protective rubber pad before placing the mount on your handlebars. Use the multitool to secure the mount in place.
- Place your DURA 2 SOLAR horizontally on the mount, and rotate it 90 degrees until it snaps into place vertically.

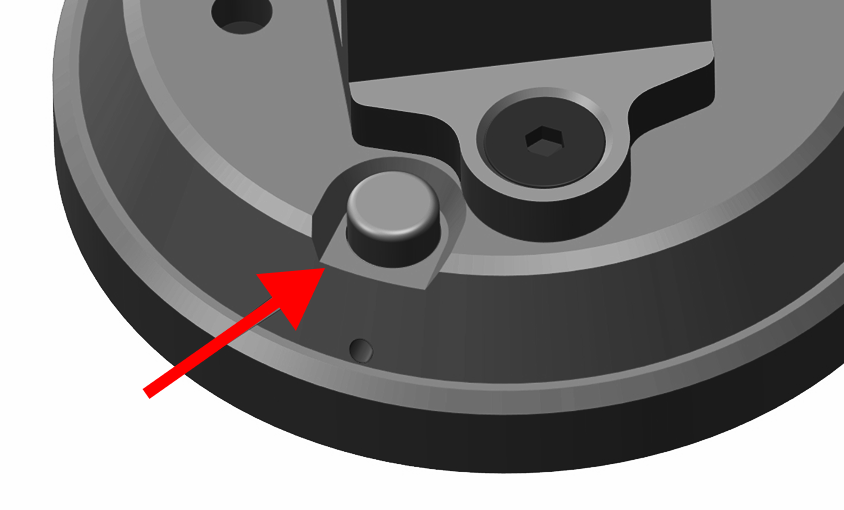

For additional security, press the lock button on the bottom of the mount. When engaged, DURA 2 SOLAR cannot be removed from the mount. It requires using the included SIM eject tool to disengage the lock button.
Compatibility with Front Lights
The Standard Mount is compatible with most 3-prong or 3-jaw mounting systems for front lights and action cameras.
